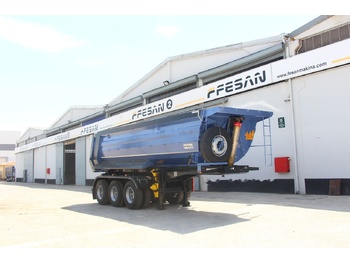

리스 Fesan SCRAPS HARDOX TIPPER

HIGH VOLUME ACCORDION TYPE TIPPER TECHNICAL SPECIFICATION

Chasis Specification

 Chasis: S700MC type sheet metal will be used on producing of chasis.

 Axles: 3x9 Ton Fesan brand axles with drum (SKF Roller-20 linings)

 King Pin : 2” 11.5 Ton

 Suspension: 813 Model (Double Spring)

 Tires and Rims : Lassa 300T 385/65R/22,5 – 6 pcs

 Landing Gears: Mechanic Oms brand

 EBS Brake System: 2S/2M

 Electrical System : Sa-Ba Modul Set

 Chasis Color: RAL 7350

 Chasis Weight: 4570 Kg ± %3

 Foldable Buffer

Dumper Body Specification

 Floor Sheet Metal : 4mm Hardox 450

 Side Wall Sheet Metal : 3 mm Hardox 450

 Front Wall Sheet Metal : 3 mm Hardox 450

 Door Sheet Metal : 2mm Hardox 450

 Floor and Side Column Support Sheet Metal: S700MC

 Door : Mechanic Type Two Side Opening

 Inner Heigth: 1800 mm

 Outer Heigth: 3350 mm

 Outer Width : 2550 mm Max.

 Inner Width: 2340 mm – 2430 mm

 Floor Width: 2200 mm

 Inner Length: 8800 mm

 Outer Length: 9820 mm

 Volume : 37 m³

 Body Weigth: 3080 Kg ± %3

 Telescobic Cylinder : 175–5–5550 ( Hidromas )

Accesories

 Tool Box: 1 Unit 100 cm Metal Sheet

 Wheel Stopper : 1 Unit Plastic

 Spare Wheel Carrier: 1 Unit Hanging Well Type

 Fire Extinguisher Cabinet : 1 Unit Plastic

 Water Tanks : 1 Unit Plastic

 Mudguard Type : 6 Units for Each Tires

Paint

 Crete Metal Sanding Epoxy - Prime Coat Acrylic Paint
